RFJ REDUCING FLANGES

1.WHAT ARE REDUCING FLANGES?

Reducing Flanges that are custom built to suit the varying demands of diverse industries. A complex piping network encompasses pipes of varied sizes, which may also be designed in a manner that these pipes may require frequent changes. Consequently, the pipe's diameter undergoes regular changes to adjust to the incoming stream of variations. Here is where a Steel Reducing Flange enters: it possess the ability to join pipes of varied sizes together with great ease. ANSI B16.5 Alloy Steel Reducing flanges can endure extreme pressure and are suitable for high-pressure systems like condensers and boilers.

OEM/ODM order accepted, standard or no-standard steel Reducing flanges in various specifications and standard materials can be manufactured according to customers’ requirements.

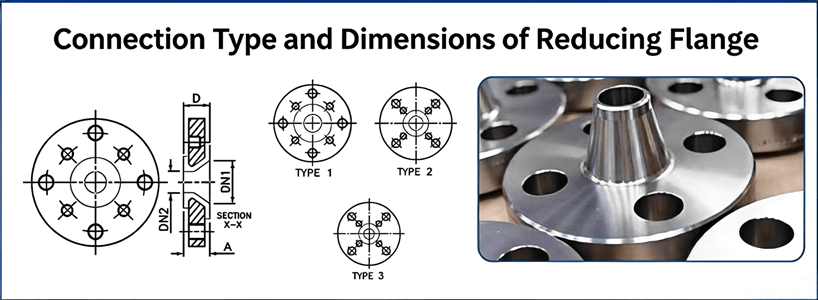

REDUCING FLANGES CONNECTION TYPES

2.Standard Specification For Reducing Flanges

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

ANSI ASME Size : 1/2"  to 48"
EN 1092-1
DIN:DN15 TO DN1200
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
JIS B2220
KS B 6216

3.Surface Treatment: Anti-rust Oil, Transparent/Black Anti-rust Paint/Hot dipped Galvanized.

4.Reducing Flanges Pressure Grade
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS,
DIN Standard PN6,10, 16, 25, 40 ,64,100,250,320,400.
JIS B2220:5K、10K、16K、20K、30K、40K,63K.

5.Material & Grades of Reducing Flanges:
Carbon Steels:A516 Gr.70 ANTI-HIC, A694 F52 / F60 / F65 / F70, A105, SA-266M, 20#, 16Mn, 16MnHIC, 20#HIC, and equivalents.
Alloy Steels:SA182-F11, SA182-F22, 15CrMo, 20MnMoNb, 25Cr2MoVA, 14Cr1Mo, 12Cr2Mo1, 08Cr2AlMo, 12Cr5Mo, 38CrMoAl, 20MnNiMo, SA-508 Gr.3, and equivalents.
Low-Temperature Steels:SA350 LF1 / LF2 / LF3, 09MnNiD, 16MnD, 20MnMoD, 08Ni3D, 10NiMoVD, and equivalents.
Stainless Steels:F304 / 304L / 304H (1.4306), F316 / 316L / 316H (1.4404), F321 (1.4541), 316Ti (1.4571), F347 / F347H (1.4550), F317 (1.4449), F310 (1.4845), F904L (S39042 / 1.4539), X2CrNiMo25-22-2, SA-182M F310MoLN, A182 F6NM, A182 F6a, and equivalents.
Duplex & Super Duplex Stainless Steels:S31803 (2205), F51 (S22253), F60 (S22053 / 2205), F53 (S25073 / 2207), and equivalents.
Specialty Alloys & Nickel Alloys:SB462-N08020, Incoloy 800, UNS N08020, B564 UNS N10276, UNS N08367, NS1403, and equivalents.

6.Sealing Surface Types For  Reducing Flanges:
RF (Raised Face);                  EN 1092-1 Type B
FF (Flat Face);                       EN 1092-1 Type A
RTJ (Ring-Type Joint)           EN 1092-1  Type E

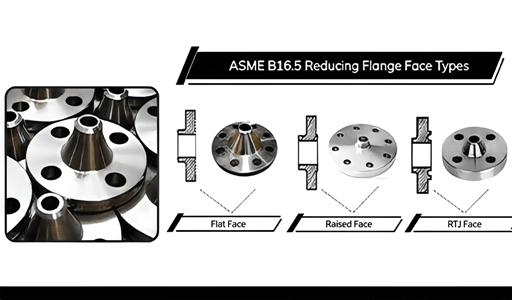

REDUCING FLANGES FACE TYPES

7.ANSI B16.5 Reducing Flanges Application
ASME B16.5 Reducing Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Reducing Flanges. These Reducing Flange is use in various industries.
