SW:Socket Weld Flanges

1.What are socket weld Flanges?

Socket Weld Flanges (SW) are counter-bored i.e. the bore of the flange and pipe, both are same, thereby providing a good flow of the product through the pipe. Initially used for small-sized high pressure pipes, Socket Weld Flanges now can be used in high pressure systems too. Stainless Steel Socket Weld Flanges are oxidation resistant and promote better weldability and fabricability. DLFT offer ANSI B16.5 Carbon Steel Socket Weld Flanges that have excellent stress corrosion cracking resistance to the LNG, seawater and mining industry.

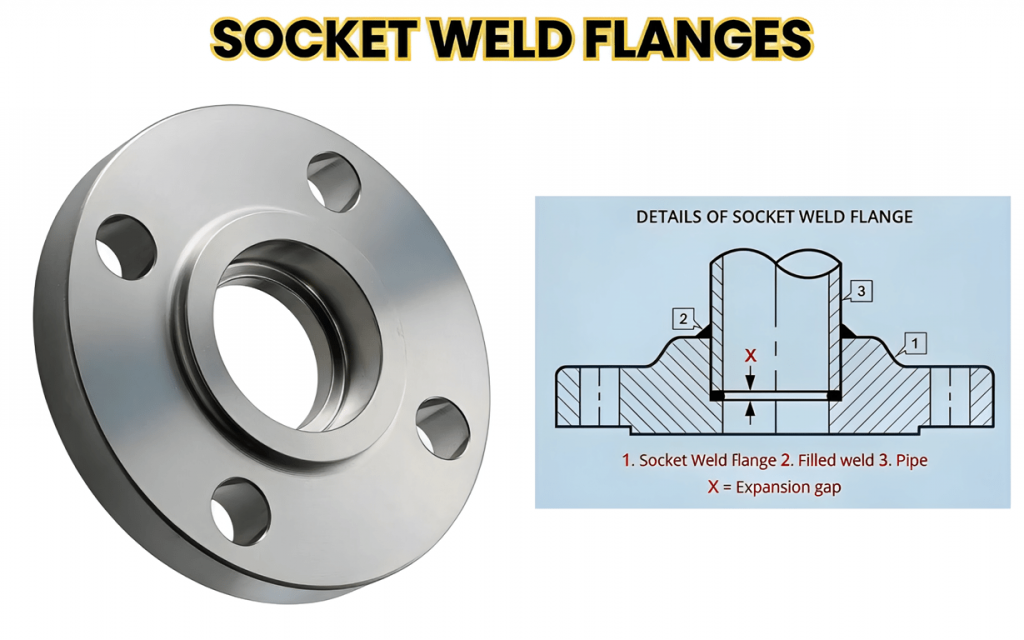

Socket Weld Flanges

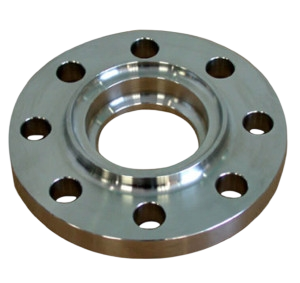

300lb-Socket-Welding-Flange

OEM/ODM order accepted, standard or no-standard steel Socket weld flanges in various specifications and standard materials can be manufactured according to customers’ requirements.

2.Standard Specification For Socket weld Flanges

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Socket Weld flanges’ widest range of application lies in pipes of small dimensions that conduct fluids at high pressures. ANSI B16.5 Socket Weld flange recommend its use in tubes up to 3 “in diameter in series 150, 300, 600, and up to 2 ½” in series 900.

SW Flange:

ANSI:NPS 1/2" ~ 4"

DIN:DN15 ~ DN100
EN 1092-1

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

JIS B2220

KS B 6216

3.Surface Treatment: Anti-rust Oil, Transparent/Black Anti-rust Paint/Hot dipped Galvanized.

Top Quality Socket Welding Flanges At Competitive Price From DLFT

4.Socket Weld Flange Pressure Grade

ANSI Class : 150, 300 , 600 , 900 LBS,

DIN Standard PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100
JIS B2220：5K、10K、16K、20K、30K、40K

5.Socket Weld Flange Materials

Carbon Steels:A516 Gr.70 ANTI-HIC, A694 F52 / F60 / F65 / F70, A105, SA-266M, 20#, 16Mn, 16MnHIC, 20#HIC, and equivalents.

Alloy Steels:SA182-F11, SA182-F22, 15CrMo, 20MnMoNb, 25Cr2MoVA, 14Cr1Mo, 12Cr2Mo1, 08Cr2AlMo, 12Cr5Mo, 38CrMoAl, 20MnNiMo, SA-508 Gr.3, and equivalents.

Low-Temperature Steels:SA350 LF1 / LF2 / LF3, 09MnNiD, 16MnD, 20MnMoD, 08Ni3D, 10NiMoVD, and equivalents.

Stainless Steels:F304 / 304L / 304H (1.4306), F316 / 316L / 316H (1.4404), F321 (1.4541), 316Ti (1.4571), F347 / F347H (1.4550), F317 (1.4449), F310 (1.4845), F904L (S39042 / 1.4539), X2CrNiMo25-22-2, SA-182M F310MoLN, A182 F6NM, A182 F6a, and equivalents.

Duplex & Super Duplex Stainless Steels:S31803 (2205), F51 (S22253), F60 (S22053 / 2205), F53 (S25073 / 2207), and equivalents.

Specialty Alloys & Nickel Alloys:SB462-N08020, Incoloy 800, UNS N08020, B564 UNS N10276, UNS N08367, NS1403, and equivalents.

6.Sealing Surface Types For Weld Neck Flanges

RF (Raised Face);             EN 1092-1 Type B
FF (Flat Face);                EN 1092-1 Type A
M&F (Male-and-Female Face);   EN 1092-1 Type C
RTJ (Ring-Type Joint)          EN 1092-1  Type E
F (Female Face);
M (Male Face);
T&G (Tongue and Groove Face);  EN 1092-1Type D
Among them, the uneven surface (MFM) is a matching use;

FLANGE SEALING FACE TYPES

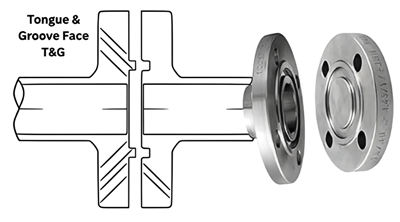

T&G TONGUE GROOVE FACE FLANGE

7.ANSI B16.5 Socket weld Flanges Application

ASME B16.5 Socket weld Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. DLFT Supply a broad range of Socket weld Flanges.Socket weld Flange is use in various industries.
